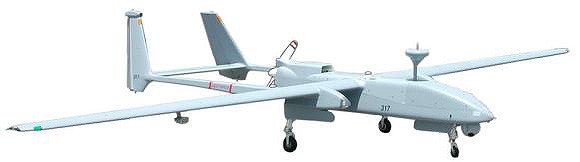

Fact Sheet: Heron 1 Unmanned Aerial Vehicle (UAV)

The Republic of Singapore Air Force (RSAF) took delivery of the Heron 1 Unmanned Aerial Vehicle (UAV), a medium altitude UAV, to gradually replace the Searcher-class UAV that has been in service in the Singapore Armed Forces (SAF) since 1994. The Heron 1 UAV features state-of-the-art avionics, detection capabilities and communication systems, as well as a fully automatic take-off and landing capability. Its longer flight endurance and better surveillance capabilities will provide the SAF with better situational awareness in the field and enhance mission effectiveness. The capabilities of the RSAF's Heron 1 UAV include a Multi-mission Optronic Stabilised Payload (MOSP) equipped with a 3rd Generation Forward Looking Infrared (FLIR) system that allows the aircraft to effectively perform a wide array of missions including target acquisition and area surveillance operations to increase battlefield awareness for the SAF's ground forces.

The Heron 1 UAV is also capable of autonomous flight and is equipped with an Autonomous Flight and Automatic Take Off and Landing (ATOL) system. A desired flight route can be scheduled prior to launch, with the UAV returning to a pre-designated recovery point at the end of the mission. This allows the UAV operators to focus on collecting and processing information instead of flight operations, thus enhancing the timeliness of information dissemination. The Heron 1 UAV is operated from a Ground Control Station (GCS) which allows the UAV pilot to send control signals to the platform. The GCS also undertakes the processing, retrieving and storing of flight information and real-time images captured by the UAV.


Manufacturer IAI Malat
Engine ROTAX 914 Engine (1211cc)
Overall Length 8.8 metres
Wingspan 16.6 metres
Maximum Take-off Weight 1,100 kilograms
Maximum Operating Range About 200 kilometres
Endurance Greater than 24 hours
Cruise Speed 60 - 70 knots
Payload Capability Multi-mission Optronic Stabilised Payload (MOSP)
